Features and Benefits:

• Compatible with all 10,000psi rated single acting hydraulic hoses, cylinders, and tools
• 60in3 of usable oil allows you to fully extend a wide variety of small cylinders and tools to full stroke
• Manual Valve ‐ Control return flow with precision and ease
• Bladder Window ‐ Quickly gauge fluid levels
• Trigger Lock Out ‐ Prevent unwanted tool activation in transport, set up, and tear down
• Integrated D-Rings to easily tie-off with a lanyard at height
• leverage the included shoulder strap for easier transport, and to keep the pump close for those hard-to-reach applications
• Compact and light weight design at only 12.6 lbs (with M18™ XC 5.0)
• Female Quick Connect Cone Poppet Coupler ‐ Compatible with common cone poppet and ball poppet male quick-connect couplers
• Brushless Motor provides improved durability
• Compatible with all M18™ batteries and chargers

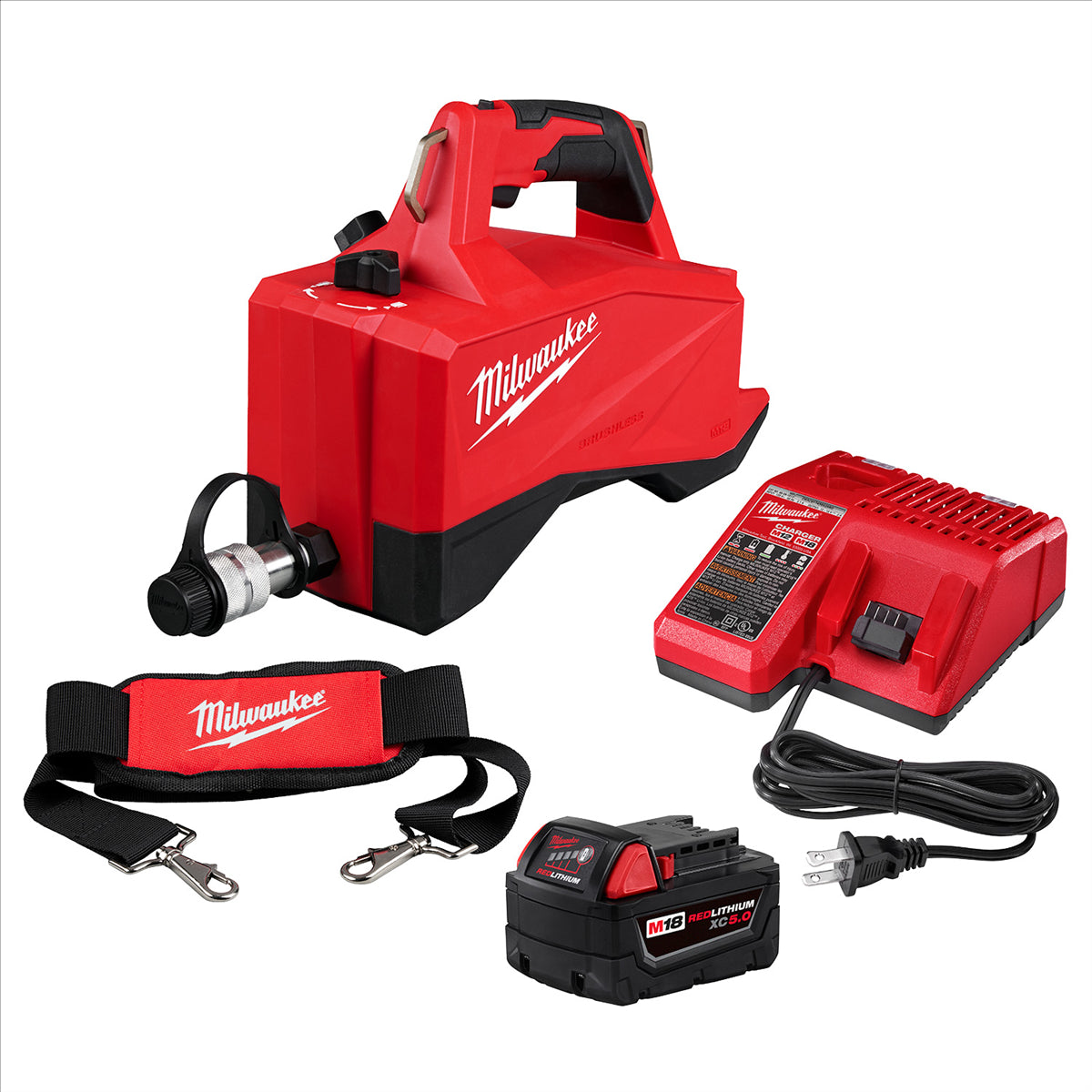

The MILWAUKEE® M18™ Brushless Single Acting 60in3 10,000psi Hydraulic Pump eliminates manual pumping, delivering up to 2.5X faster application speeds. By eliminating the need to manually pump, this solution vastly reduces fatigue, with up to 95% less muscle effort vs. hand pumps, delivering increased productivity and faster applications. The single-acting pump features 60in3 of usable oil to fully extend a wide variety of small tools and cylinders to full stroke. The single-acting hydraulic pump is designed to be fully compatible with all existing 10,000psi single-acting rated hydraulic hoses and cylinders. A manual valve allows precise control over return flow, while a bladder window allows you to quickly gauge fluid levels. At 12.6lbs, this compact pump is highly portable and allows easy transport to your application. A trigger lock-out helps prevent unwanted tool activation in transport, set up, and tear down. The kit includes (1) M18™ XC 5.0 REDLITHIUM™ Battery, an M18™ and M12™ Multi-Voltage Charger, a Shoulder Strap, and a 3/8” NPTF Female Quick Connect Cone Poppet Coupler (installed on the tool).
